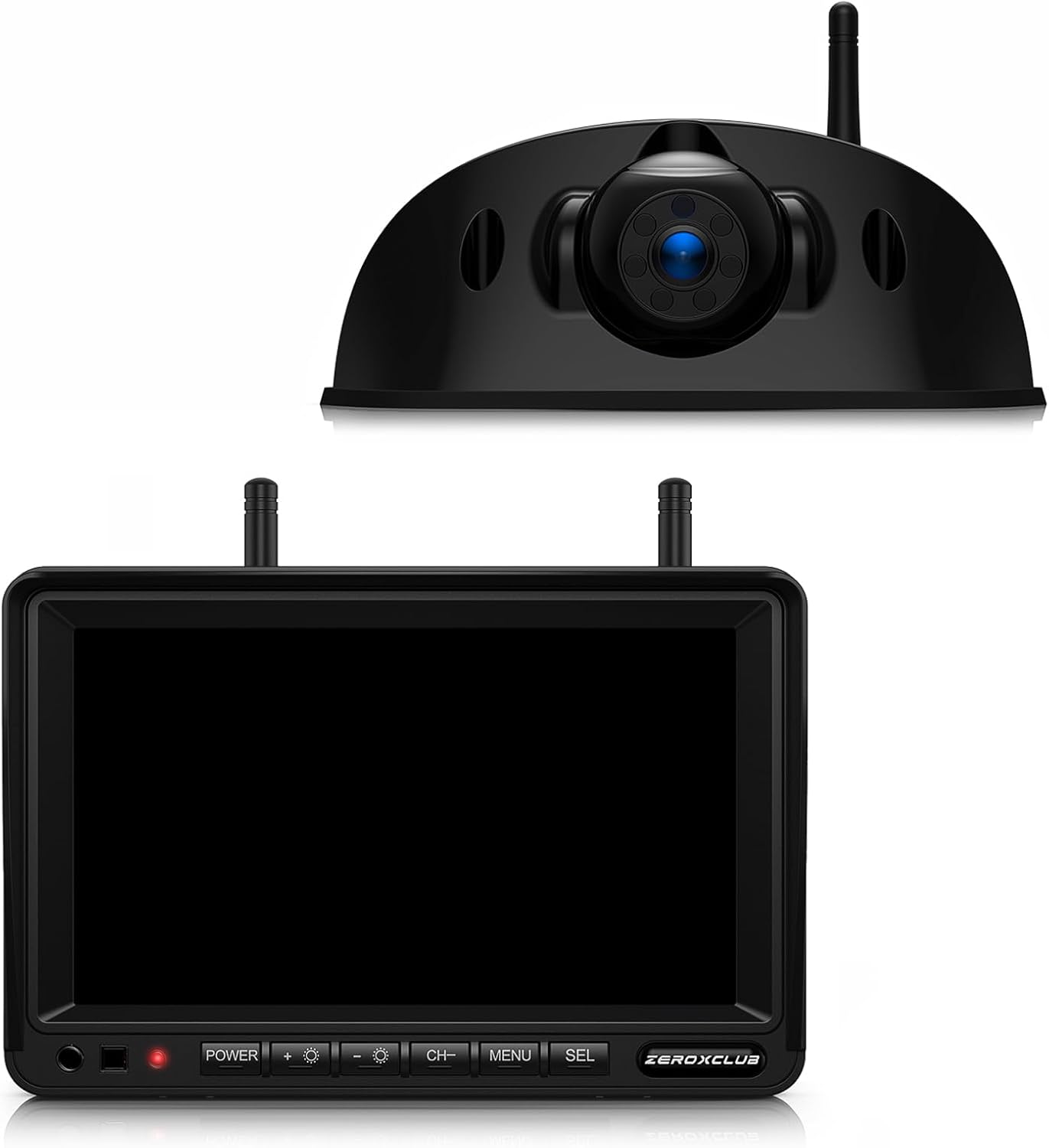

1080P 7" Wireless RV Backup Camera System, Compatible with Furrion Pre-Wired RV Truck Trailer, DVR Monitor & IR Night Vision Rear View Camera, IP69 Waterproof, Adjustable Parking lines, BW7M

Brand: ZEROXCLUB
Screen Size: 7 Inches
Product Dimensions: 7"L x 1"W x 5"H
Compatible Devices: BW7M Camera
Installation Type: Surface Mount
Optical Sensor Technology: infrared
Lens Type: Wide Angle
Real Angle of View: 120 Degrees
Connector Type: 3.5mm male jack, DC
Optical Sensor Size: 1/3 inch

Simple Installation: Most RVs are already equipped with Furrion pre-wired and mounting locations, this wireless RV backup camera system connects directly to Furrion pre-wired jacks. The camera automatically powers on when your vehicle’s lights are activated. No complex wiring. For vehicles without pre-wired mounts, installation remains straightforward: simply secure the camera in place and connect it to the vehicle’s power supply.

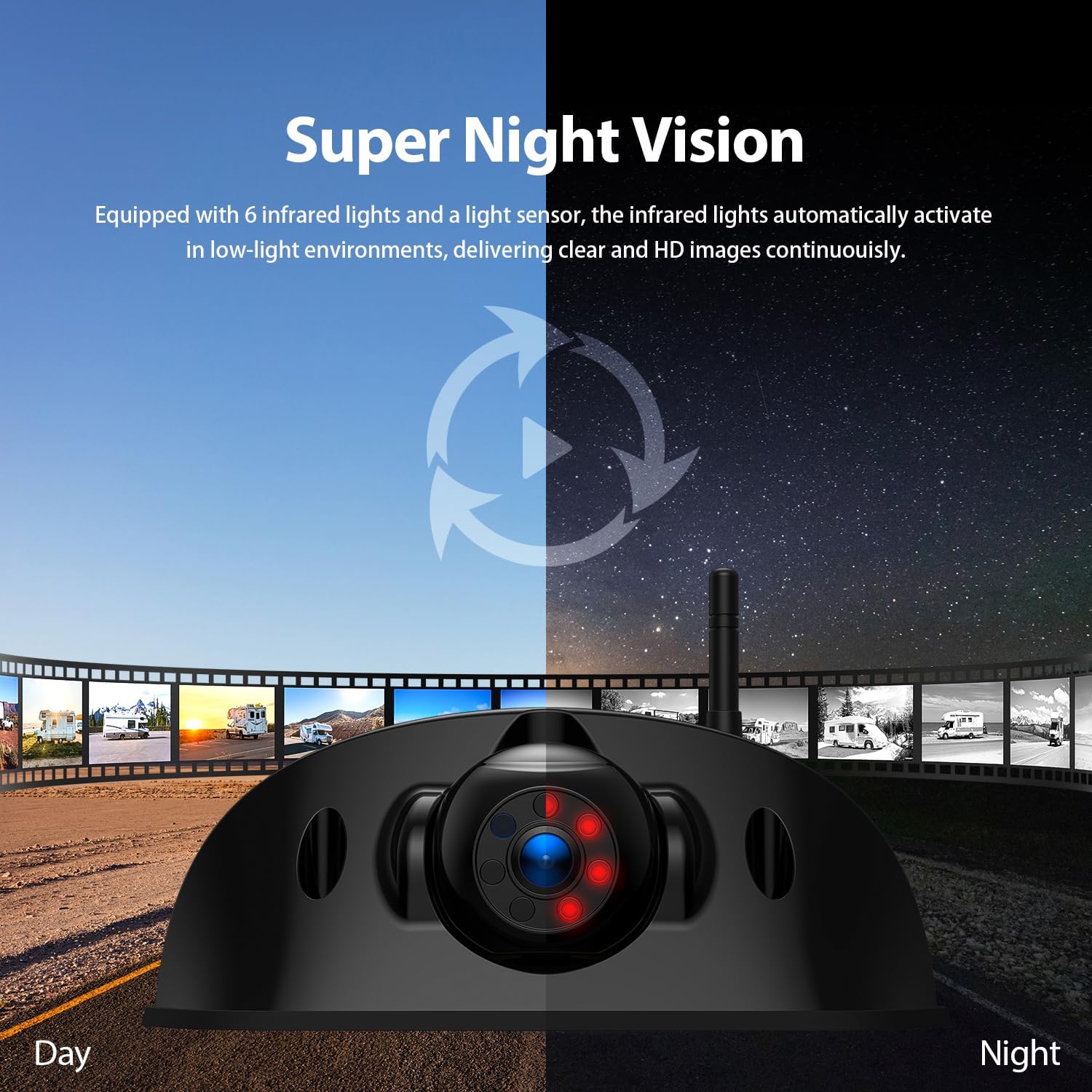

IP69k Waterproof Camera with Night Vision: The IP69k waterproof rating ensures reliable operation in extreme weather conditions, such as heavy rain or snow. With a 120° viewing angle, it provides a clear rear view. Equipped with 6 infrared lights and a light sensor, the infrared lights automatically activate in low-light environments, delivering clear and HD images continuouisly.
Dual Antenna for Strong Signal: The 2.4GHz proprietary wireless communication ensures a reliable digital connection between the camera and the monitor. With a high-speed reception range of up to 100 feet, it delivers real-time images without interference.
Clear 7-inch IPS Screen: The 7-inch full-color IPS screen can display clear images from up to 4 cameras, providing comprehensive coverage. It comes with both a windshield suction cup mount and a desktop stand for convenient viewing. Parking guidelines make reversing safer and more convenient.
More Upgraded Features: With loop recording, simply insert an SD card to record moments or evidence of your vehicle. The image can be set to either front view or rear view as needed. If you add more cameras to the system, it can be set to split-screen mode, allowing you to monitor your surroundings simultaneously.
For GMC/Chevy/Ford Owners: Newer GM vehicles utilize PWM power, which may interfere with video transmission—resulting in flickering / signal loss / screen freeze. To ensure stable performance, we recommend adding a Furrion 7-way adapter (not included) or a 12V PWM filter (not included). These accessories help clean the power supply, restoring reliable camera operation. Tip: To confirm if your vehicle uses PWM power, you can use portable 12V Power Supply or Household Power Supply Testing.
Wireless Transmission: The BW7M system wirelessly transmits video between the camera and monitor (no video cables required). However, both units require wired power connections to ensure stable power supply and consistent performance, which is crucial for the camera to function properly. (Note: "Wireless" refers only to video transmission)
The BW7M camera system can be used as a back-up camera (wiring to the reverse lights) or and observation system (wiring to the running lights). Make sure you have whatever lights the camera(s) are wired too on when testing the cameras. If you have it connected to the running lights, then the running lights need to be on for the cameras to receive power. This is a common thing that gets overlooked when testing the camera.
Please note that this system is not compatible with the furrion cameras.
